FULL GEAR COUPLING LFGC 101

FULL GEAR COUPLING LFGC 101

  • Min Bore (mm)- 20
  • Max Bore (mm)- 50
  • Max RPM- 6300

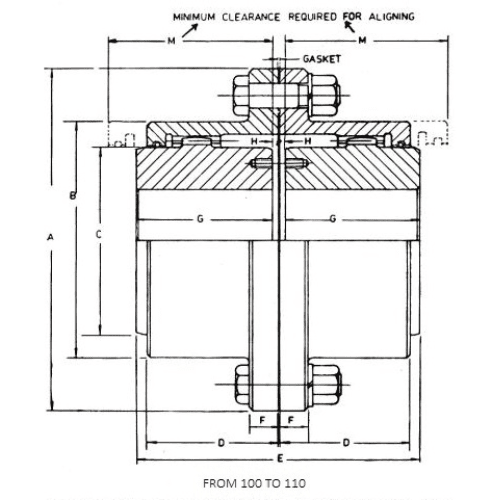

    DIMENSIONS

    A B C D E F G H M
    170 110 65 49 115 17 55 2.5 65

Brand: Coupling House

In stock

In stock

49 Items sold in last 30 days
  • Courier delivery
Suitable for light weight products (Upto 20 KG)
  • Deliver by Transport - To Pay Godown/Door

VRL Logistic, TCI Freight, ACPL Roadways, Vijay Lakshmi Transport

Heavy Weight Product (More than 10 KG)

  • Deliver by Transport - Paid Godown/Door Delivery

VRL Logistic, TCI Freight, ACPL Roadways, Vijay Lakshmi Transport, Delhivery Courier

Heavy Weight Product (More than 10 KG)

  • Benefits Of Buying From Us!!
  • GST Invoice Available
  • 100% Secured Payment
  • Upto 48 Hours Return & Refund
  • Fast & Flexible Shipping Options

Payment Methods:

Description

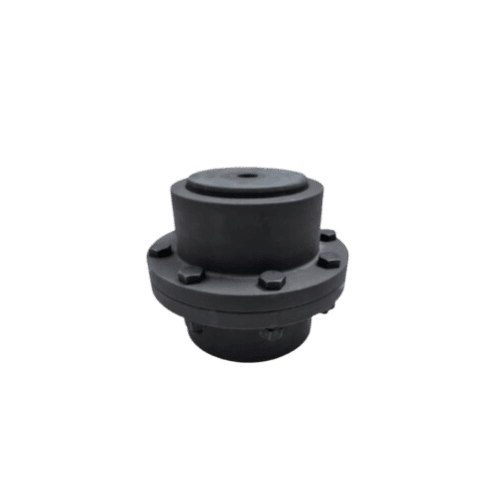

Full Gear Coupling LFGC 101

Gear couplings play a pivotal role in the seamless operation of various industrial machinery, providing the necessary flexibility to compensate for misalignments in connected shafts. Among the diverse range of gear couplings available, the Full Gear Coupling LFGC 101 stands out for its exceptional performance and reliability.

Gear couplings are indispensable components in numerous industries, facilitating the transmission of power between shafts while accommodating angular, parallel, and axial misalignments. The Full Gear Coupling LFGC 101, in particular, is designed to meet the rigorous demands of heavy-duty applications across various sectors.

Advantages of Full Gear Coupling LFGC 101

  • High torque and misalignment capacity.
  • Sleeves with internal spur teeth.
  • Shock and vibration absorption.
  • Requires minimal maintenance.
  • Angular and parallel misalignment compensation.

SELECTION OF THE COUPLINGS:

  1. Type of driven machine: Compatibility with specific machinery and equipment requirements.
  2. Power and load: Ability to handle the power absorbed by the driven machine, including peak loads.
  3. Shaft speed and diameter: Compatibility with connecting shafts, considering available space and operating conditions.
  4. Misalignment compensation: Capacity to address angular, parallel, and axial misalignments.
  5. Environmental factors: Consideration of surrounding temperature and other conditions impacting performance.
  6. Special features: Assessment of any unique requirements or additional features of the drive system.

Specification

Product Overview

Weight 10 kg
Surface Treatment

Blackodised

Hub Material

Forged Steel

Flange material

Forged Steel

Max Dispatch Time

2 To 3 Days
